TDP 4845-34 Storage Bottom
The TDP 4845-34 Storage Bottom collapsible container is designed with efficiency and eco-responsibility in mind. Its innovative design allows for dunnage to be collapsed and stored inside the container for return, offering significant return ratio and sustainability advantages.
TDP 4845-34 Storage Bottom Product Specifications
Outside Dimensions (inches):
- Length: 47.9″
- Width: 44.9″
- Height: 34″
Inside Dimensions (inches):
- Length: 44.3″
- Width: 41.5″
- Height: 28.5″
Container Capacity:
- Maximum Load Capacity: 2,000 lbs.
- Fill Line Height: 27.5″

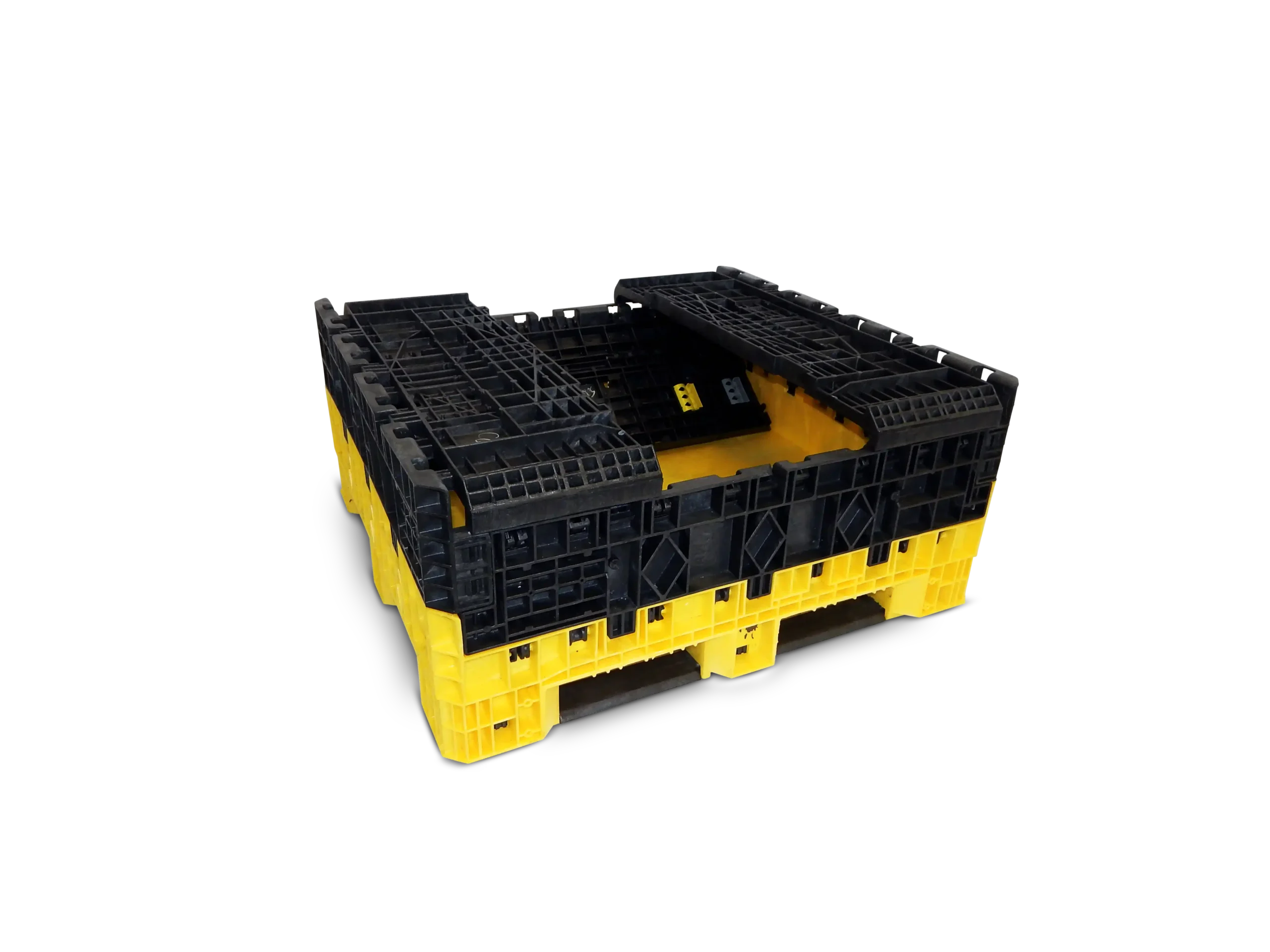

- Collapsed Height: 12.7″
- Closed Height Storage Space: 10.5″
- Weight: 145 lbs.
- Return Ratio: 2:5:1
Doors:
- Door Height: 11.3″
- Door Width: 28.9″
Fork Openings:
- Long Side: 3.5″ x 11.7″
- Short Side: 3.5″ x 10.3″
Trailer Capacity:
- Collapsed (53′ Trailer): 140 units
- Assembled (53′ Trailer): 84 units
Stacking:
- Maximum Static Stack: 6 high
- Maximum Dynamic Stack: 3 high
Note: All dimensions are approximate and may vary due to substantial temperature changes or handling methods.
Eco-Friendly Innovation
The TDP 4845-34 Storage Bottom optimizes return ratios and reduces environmental impact by enabling dunnage to be efficiently stored and returned. This makes it a sustainable choice for businesses seeking both operational efficiency and eco-conscious solutions.
