TDP 4845-25

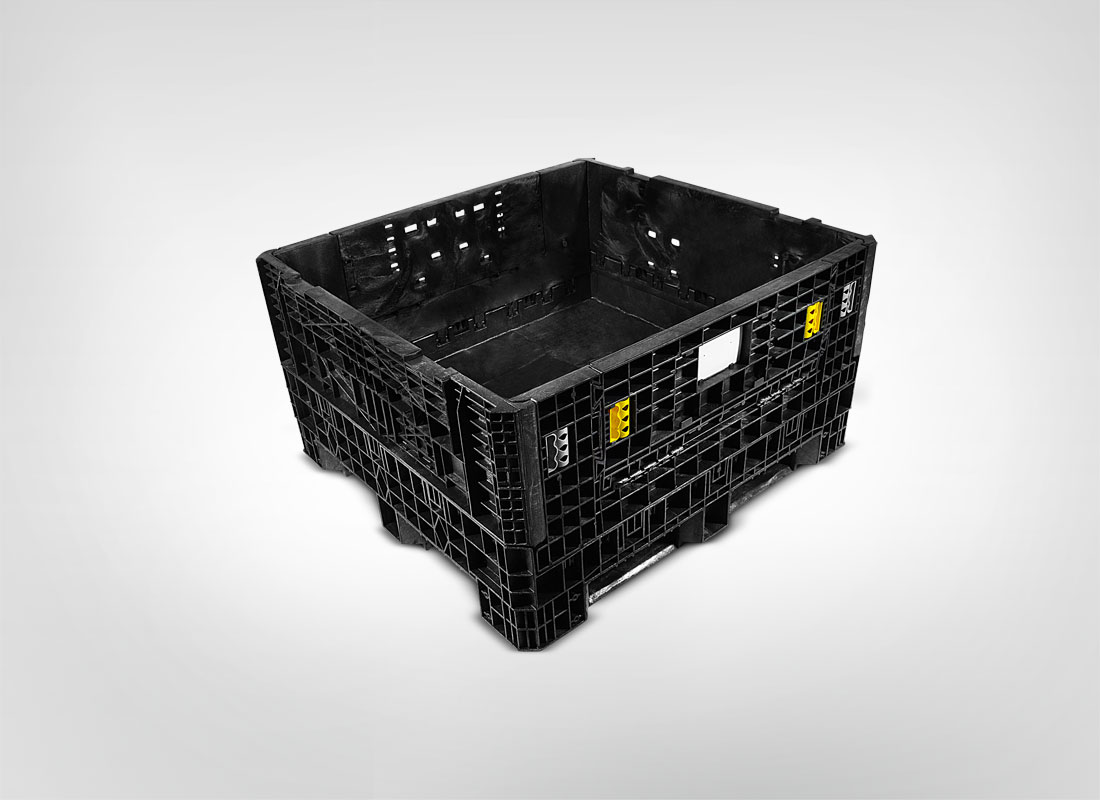

The TDP 4845-25 collapsible container is a durable, high-capacity storage solution designed for efficient material handling and transportation. Its versatile design and robust construction make it ideal for industries requiring reliable and eco-conscious packaging options.
TDP 4845-25 Product Specifications
Outside Dimensions (inches):
- Length: 47.9″
- Width: 44.9″
- Height: 25″
Inside Dimensions (inches):
- Length: 44.3″
- Width: 41.5″
- Height: 19.6″
Container Capacity:
- Maximum Load Capacity: 2,000 lbs.
- Fill Line Height: 18.6″

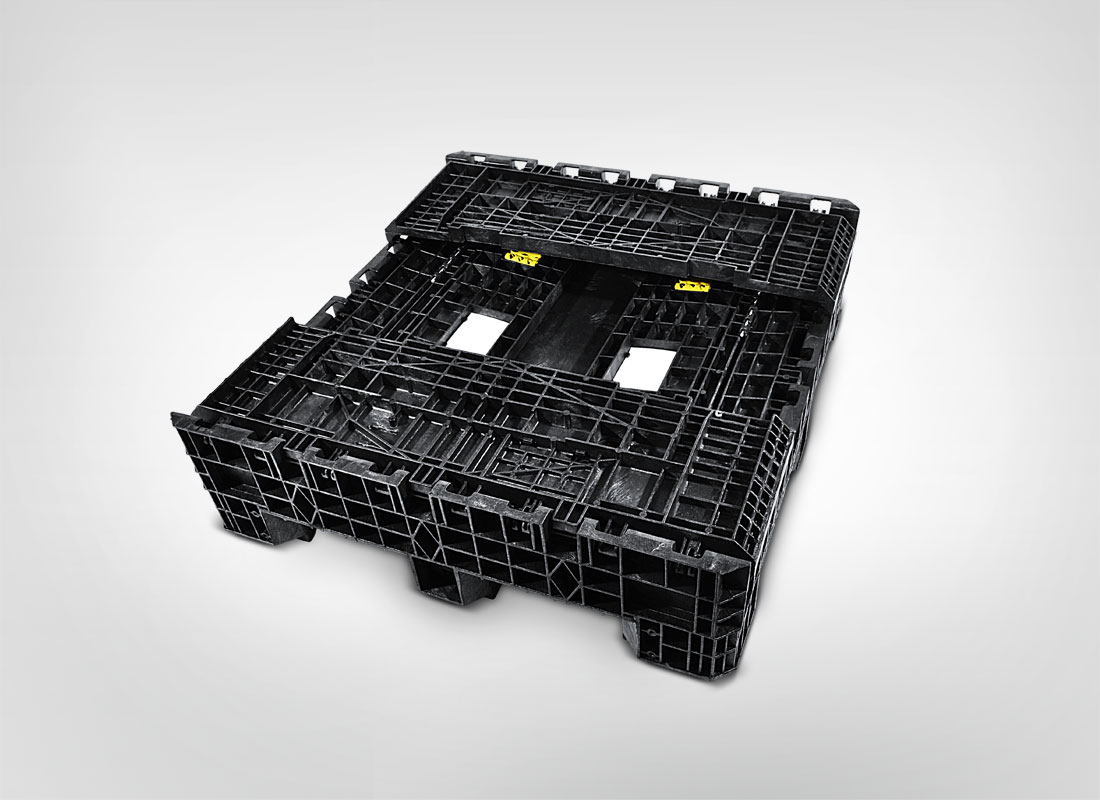

- Collapsed Height: 12.7″
- Weight: 120 lbs.
- Return Ratio: 2:3:1
Doors:

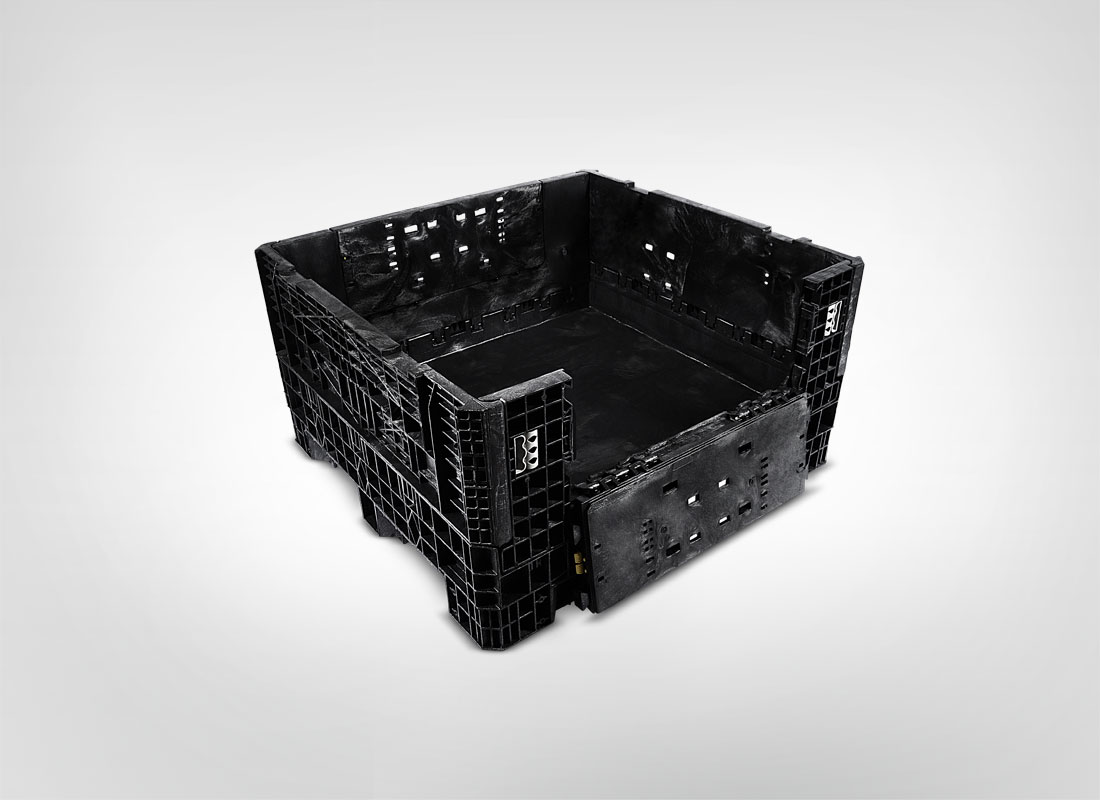

- Door Height: 11.3″
- Door Width: 28.9″
Fork Openings:
- Long Side: 3.5″ x 11.25″
- Short Side: 3.5″ x 10.3″
Trailer Capacity:
- Collapsed (53′ Trailer): 252 units
- Assembled (53′ Trailer): 112 units
Stacking:
- Maximum Static Stack: 6 high
- Maximum Dynamic Stack: 4 high
Note: All dimensions are approximate and may vary due to substantial temperature changes or handling methods.
