TDP 3230-25
The TDP 3230-25 collapsible container is the perfect solution for businesses seeking a durable, space-saving container with exceptional load capacity. Designed with efficiency in mind, this container is ideal for industries that prioritize optimized storage and transportation.
TDP 3230-25 Product Specifications
Outside Dimensions (inches):
- Length: 31.9″
- Width: 29.8″
- Height: 25″
Inside Dimensions (inches):
- Length: 29.4″
- Width: 27.3″
- Height: 25″
Container Capacity:
- Maximum Load Capacity: 2,000 lbs.
- Fill Line Height: 18.5″

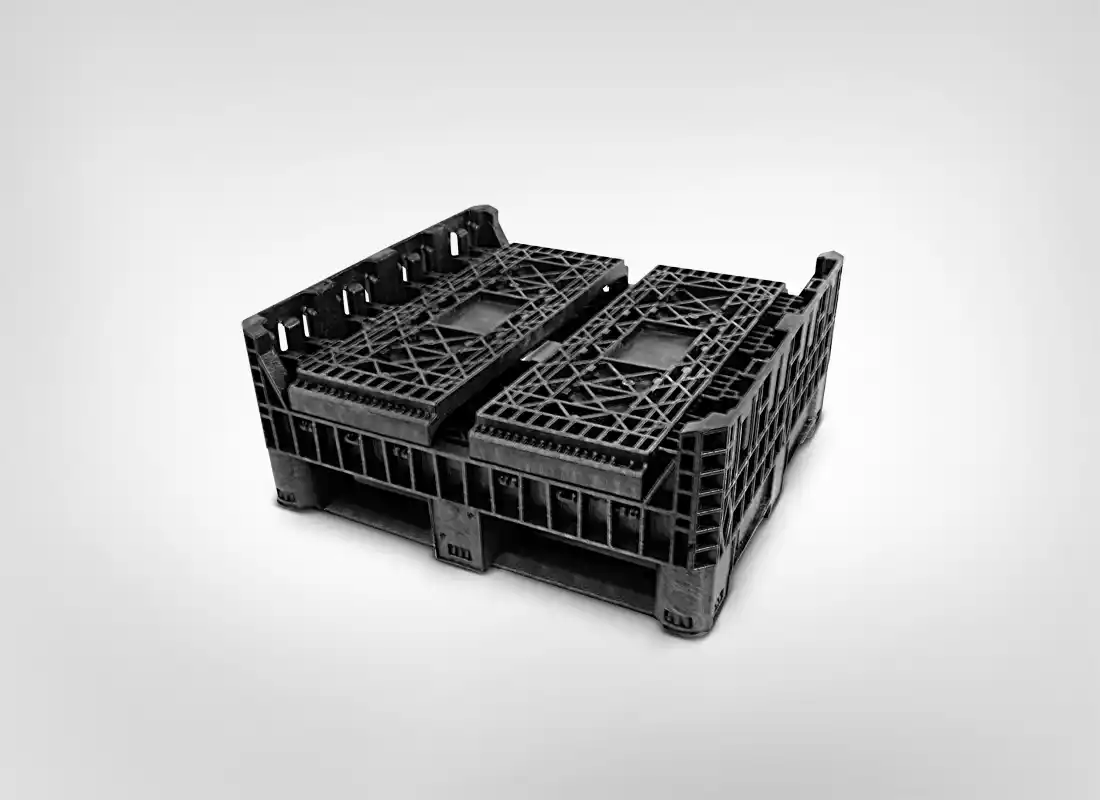

- Collapsed Height: 14.25″
- Weight: 77 lbs.
- Return Ratio: 2:3:1

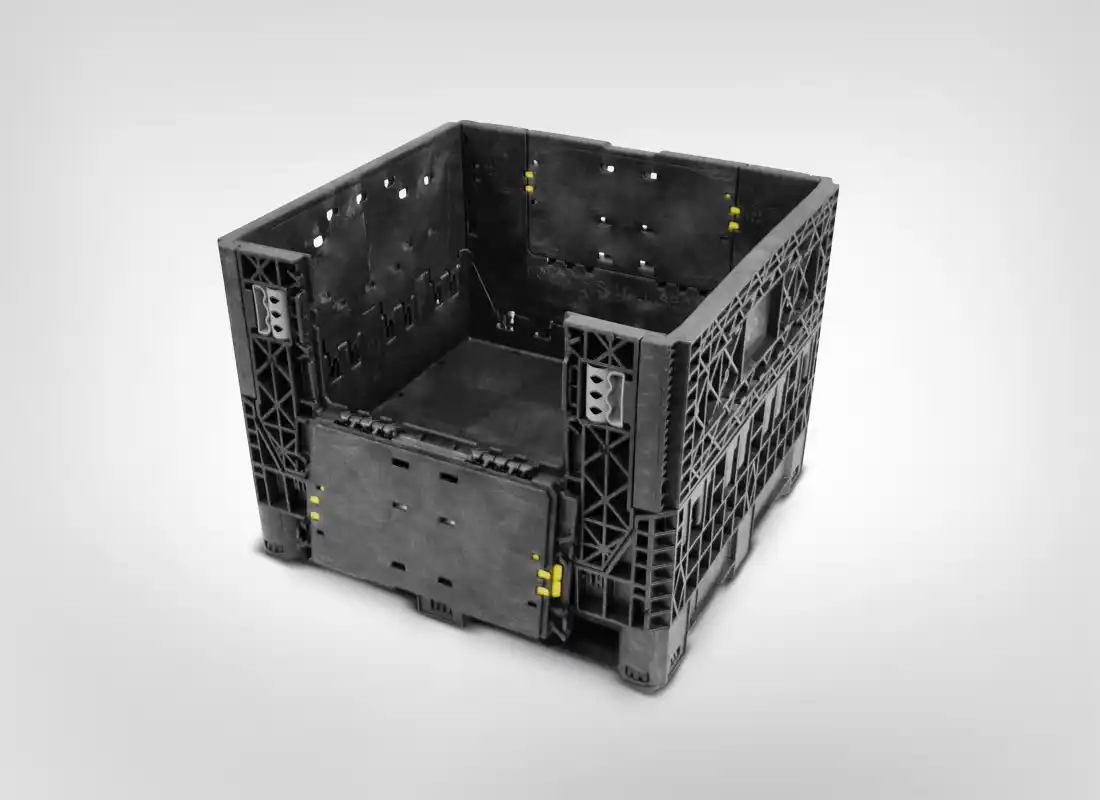

Doors:
- Door Height: 10.5″
- Door Width: 17.3″

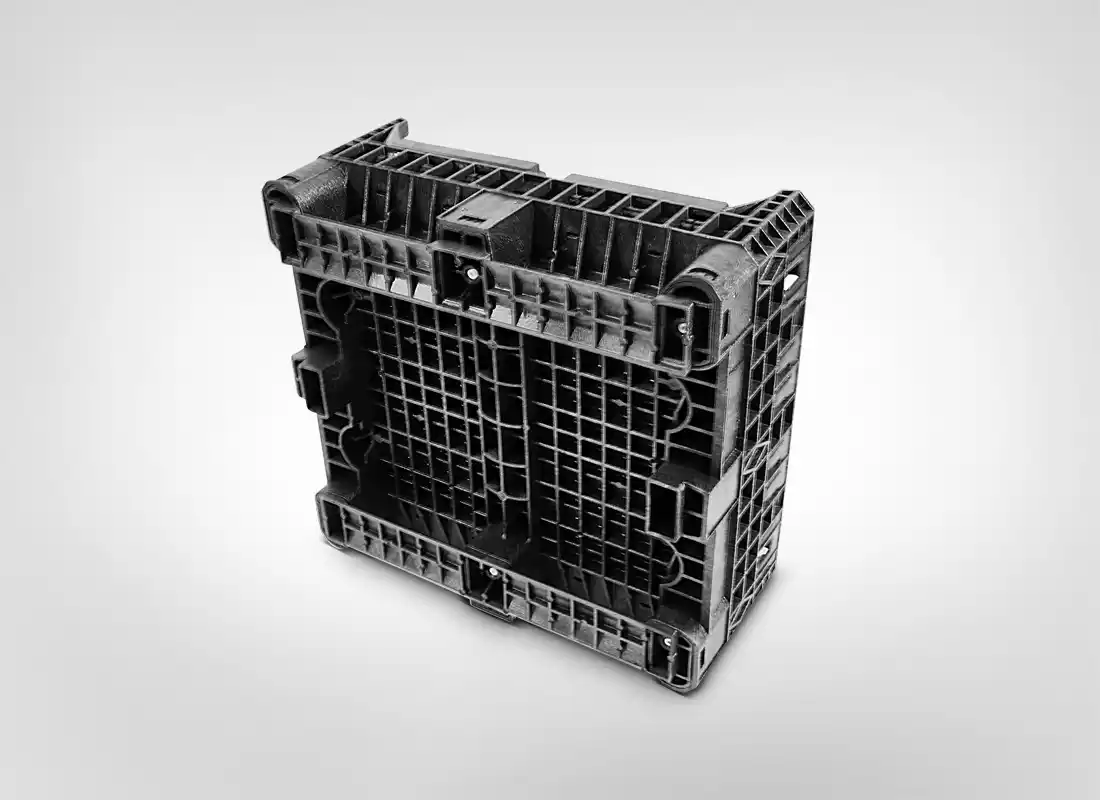

Fork Openings:
- Long Side: 3.38″ x 10.25″
- Short Side: 2.25″ x 7.3″
Trailer Capacity:
- Collapsed (53′ Trailer): 420 units
- Assembled (53′ Trailer): 240 units
Stacking:
- Maximum Static Stack: 6 high
- Maximum Dynamic Stack: 4 high
Note: All dimensions are approximate and may vary due to substantial temperature changes or handling methods.
